Copper Ferrules
 |
 |
| Standard Ferrules | ||||

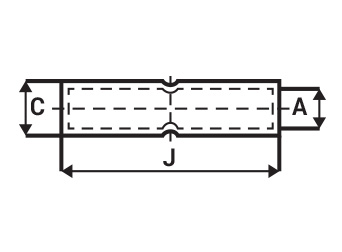

| Part No. | Cable Size mm² | A (mm) | C (mm) | J (mm) |
| CF1.5 | 1.5 | 1.9 | 3.7 | 12.7 |
| CF2.5 | 2.5 | 2.4 | 4.2 | 14.3 |
| CF4 | 4 | 2.8 | 4.7 | 16 |
| CF6 | 6 | 3.4 | 5.3 | 17.7 |
| CF10 | 10 | 4.4 | 6.3 | 19.8 |
| CF16 | 16 | 5.4 | 7.6 | 22 |
| CF25 | 25 | 7.0 | 9.0 | 24.7 |
| CF35 | 35 | 8.2 | 10.7 | 27.5 |
| CF50 | 50 | 10 | 12.8 | 30.8 |
| CF70 | 70 | 11.7 | 15 | 34.4 |
| CF95 | 95 | 13.5 | 17.4 | 38.6 |
| CF120 | 120 | 15.5 | 19.8 | 42.9 |
| CF150 | 150 | 17 | 22 | 48.1 |
| CF185 | 185 | 19 | 24.4 | 53.6 |
| CF240 | 240 | 21.5 | 27.7 | 60 |
| CF300 | 300 | 24.5 | 31.3 | 67 |
| CF400 | 400 | 27.5 | 35.6 | 80 |
| CF500 | 500 | 31.6 | 40 | 90 |
| CF630 | 630 | 34.5 | 41.6 | 110 |
| CF800 | 800 | 40 | 51.2 | 130 |
| CF1000 | 1000 | 44 | 56.6 | 154 |
|
|
| XLPE Ferrules | ||||||||
| Part No. | Cable Size mm² | A (mm) | C (mm) | J (mm) | ||||
| XCF35 | 35 | 7.3 | 10.5 | 68 | ||||
| XCF50 | 50 | 8.7 | 12.3 | 42 | ||||
| XCF70 | 70 | 10.4 | 14.6 | 43 | ||||
| XCF95 | 95 | 12 | 17 | 45 | ||||
| XCF120 | 120 | 14 | 19 | 55 | ||||
| XCF150 | 150 | 15.2 | 21.3 | 58 | ||||
| XCF185 | 185 | 17 | 23.7 | 64 | ||||
| XCF240 | 240 | 20 | 27 | 70 | ||||
| XCF300 | 300 | 21.6 | 30.5 | 75 | ||||
| XCF400 | 400 | 24.5 | 34.6 | 80 | ||||
| XCF500 | 500 | 28.5 | 38.9 | 90 | ||||
| XCF630 | 630 | 33 | 45 | 100 | ||||
