Male Disconnectors

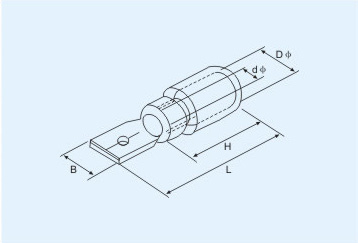

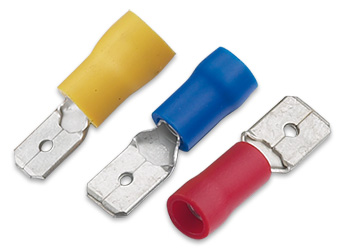

Male Disconnector Insulated Terminal Male Disconnector Insulated Terminal Diagram
Cable Size: 0.5 ˜ 1.5mm² --- Max. Current: Imax = 10A --- Material: Brass --- Insulating Material: Vinyl/Nylon
Item No. Nema Tab mm Dimension (mm) Colour
B dφ Dφ L H
35145 0.5 x 2.8 2.8 1.7 4.3 17.7 10 Red
35144 0.8 x 2.8 2.8
35146 0.5 x 4.75 4.75 20
35147 0.8 x 4.75 4.75
35135 0.8 x 6.35 6.35 21

Cable Size: 1.5 ˜ 2.5mm² --- Max. Current: Imax = 15A --- Material: Brass --- Insulating Material: Vinyl/Nylon
Item No. Nema Tab mm Dimension (mm) Colour
B dφ Dφ L H
35150 0.5 x 4.75 4.75 2.3 4.3 20 10 Blue
35151 0.8 x 4.75 4.75
35259 0.8 x 6.35 6.35

Cable Size: 4 ˜ 6mm² --- Max. Current: Imax = 24A --- Material: Brass --- Insulating Material: Vinyl/Nylon
Item No. Nema Tab mm Dimension (mm) Colour
B dφ Dφ L H
35285 0.8 x 6.35 6.35 3.4 5.7 25 13 Yellow
