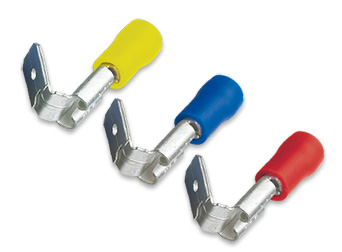

Pre-Insulated Piggy Back Disconnects
 |
 |
| Material: Brass - Insulating Material: Vinyl | ||||||||

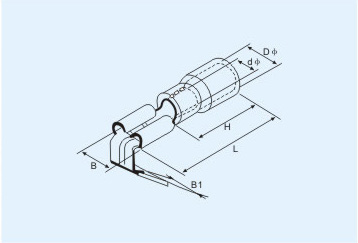

| Item No. | Nema Tab (mm) | Dimension (mm) | Cable Size & Imax | |||||
| B | B1 | H | Dφ | dφ | L | |||
| 35143 | 0.8 x 6.35 | 7.4 | 6.35 | 10 | 3.8 | 1.7 | 21.5 | 0.5-1.5mm² (10A) |
| 35262 | 0.8 x 6.35 | 7.4 | 6.35 | 10 | 4.3 | 2.3 | 21.5 | 1.5-2.5mm² (15A) |
| 35263 | 0.8 x 6.35 | 7.4 | 6.35 | 13 | 5.7 | 3.4 | 25 | 4-6mm² (24A) |
