Pre-Insulated Pin Terminals
 |
 |
| Cable Size: 0.5 ˜ 1.5mm² --- Max. Current: Imax = 19A --- Material: Copper --- Insulating Material: Vinyl/Nylon --- Thickness: 0.75mm | |||||
| Item No. | Dimension (mm) | Colour | |||

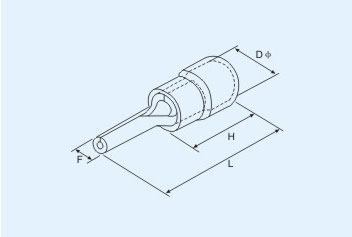

| F | L | H | Dφ | ||
| 39827 | 1.9 | 19 | 10 | 4.3 | Red |
| 39825 | 1.9 | 20 | |||
| 39828 | 1.9 | 22 | |||
| 39829 | 1.9 | 23 | |||
| 39830 | 1.9 | 28 | |||
| Cable Size: 1.5 ˜ 2.5mm² --- Max. Current: Imax = 27A --- Material: Copper --- Insulating Material: Vinyl/Nylon --- Thickness: 0.8mm | |||||
| Item No. | Dimension (mm) | Colour | |||
| F | L | H | Dφ | ||
| 39831 | 1.9 | 19 | 10 | 4.9 | Blue |
| 39824 | 1.9 | 20 | |||
| 39832 | 1.9 | 22 | |||
| 39833 | 1.9 | 23 | |||
| 39834 | 1.9 | 28 | |||
| Cable Size: 2.5 ˜ 4mm² --- Max. Current: Imax = 36A --- Material: Copper --- Insulating Material: Vinyl/Nylon --- Thickness: 1.0mm | |||||
| Item No. | Dimension (mm) | Colour | |||
| F | L | H | Dφ | ||
| 39835 | 2.8 | 20 | 13 | 6.2 | Blue |
| 39836 | 2.8 | 25 | |||
| Cable Size: 4 ˜ 6mm² --- Max. Current: Imax = 48A --- Material: Copper --- Insulating Material: Vinyl/Nylon --- Thickness: 1.0mm | |||||
| Item No. | Dimension (mm) | Colour | |||
| F | L | H | Dφ | ||
| 39823 | 2.8 | 25.5 | 13 | 6.7 | Yellow |
| 39837 | 2.8 | 30.5 | |||
