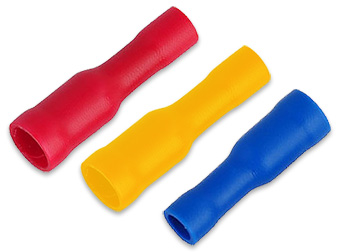

Pre-Insulated Socket Connectors
 |
 |
| Material: Brass | ||||||||
| Item No. | Thickness of Material | Dimension (mm) | Cable Size & Imax | Colour | ||||

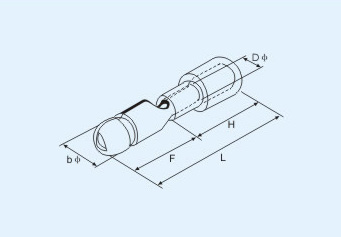

| bΦ | F | DΦ | H | L | ||||
| 35004 | 0.4 | 4 | 6.3 | 1.7 | 13 | 24.5 | 0.5 - 1.5mm² (10A) | Red |
| 35051 | 0.4 | 4 | 6.3 | 2.3 | 14 | 24.5 | 1.5 - 2.5mm² (15A) | Blue |
| 35005 | 0.4 | 5 | 7 | 2.3 | 14 | 25.5 | ||
| 35078 | 0.4 | 5 | 7 | 3.4 | 14 | 29.5 | 4 - 6mm² (24A) | Yellow |
