Terminal Ends
 |
| Part Number | Wire Cross Section mm² | Material Type | Material Thickness | Packing | Form | |
| 25725.123.178L | 0.1-0.3 | Brass Tin Plated | 0.25mm | 8000 | CF | |
| 25725.123.204L | 0.1-0.3 | Plain Brass | 0.25mm | 8000 | CF | |
| Form: CF (chain form) | Download Datasheet | |||||
 |
| Part Number | Wire Cross Section mm² | Material/Surface Finish | B1 | H1 | Material Thickness | Packing | Form |
| 25783.123.321L | 1.5 | Brass | 2.5 | 3 | 0.25mm | 60,000 | CF |
| 25787.123.204L | 0.5-1.0 | Brass | 2.4 | 2.3 | 0.25mm | 60,000 | CF |
| 25782.123.204L | 2.5 | Brass | 3.8 | 2.8 | 0.25mm | 60,000 | CF |
|
Form: CF (chain form) Terminal Feed: "E" |
Download Datasheet | ||||||
 |
| Part Number | Wire Cross Section mm² | L1 | L2 | Material/Surface Finish | Material Thickness | Packing | Form |

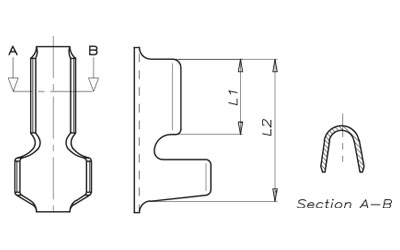

| E5130.411.131L | 0.5-1.5 | 4.5 | 8.5 | Steel/Nickel Plated | 0.3mm | 10,000 | CF |
| E5136.411.131L | 0.5-1.5 | 9 | 13 | Steel/Nickel Plated | 0.3mm | 10,000 | CF |
|
Form: CF (chain form) - S (Single pcs) Terminal Feed: "E" |
Download Datasheet | ||||||
 |
| Part Number | Wire Cross Section mm² | Material/Surface Finish | Material Thickness | Packing | Form |
| E5905.123.204L | 0.75-1.5 | Brass | 0.55mm | 50,000 | CF |
|
Form: CF (chain form) Terminal Feed: "E" |
Download Datasheet | ||||
Need Help?
ESPA Technologies offer a wide range of products and services to help you get the right connection.
