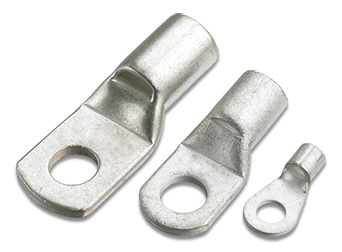

Standard Copper Cable Lugs

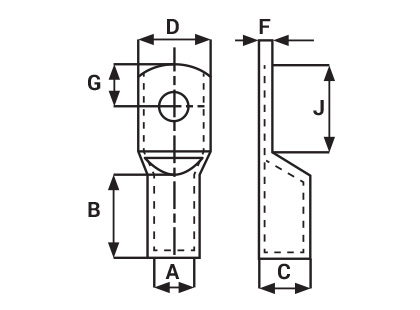

Ring Insulated Diagram Ring Insulated Diagram
Material: Copper
Part No. Cable Size mm² A B C F E D Stud Size
CL 1.5-3 1.5 1.8 3.7 7 5.5 3.5 8 3
CL 1.5-4 6.7 4.5 10 4
CL 1.5-5 7.7 5.0 11 5
CL 1.5-6 9 6.5 13 6
CL 1.5-8 13 8.5 18 8
CL 1.5-10 14.5 9 20 10
CL 2.5-3 2.5 2.4 4 7.8 5.5 3.5 8 3
CL 2.5-4 6.7 4.5 10 4
CL 2.5-5 7.7 5.0 11 5
CL 2.5-6 9 6.5 13 6
CL 2.5-8 13 8.5 18 8
CL 2.5-10 14.5 9 20 10
CL 4-3 4 2.8 4.8 8 6.3 3.5 8 3
CL 4-4 7 4.5 10 4
CL 4-5 8 5.0 11 5
CL 4-6 9 6.5 13 6
CL 4-8 13 8.5 18 8
CL 4-10 14.5 9 20 10
Part No. Cable Size mm² A B C F E D Stud Size
CL 6-4 6 3.4 5.3 10 7 4.5 10 4
CL 6-5 8 5 11 5
CL 6-6 9 6.5 13 6
CL 6-8 13 8.5 18 8
CL 6-10 14.5 9 20 10
CL 10-5 10 4.4 6.3 10.5 9 5 11 5
CL 10-6 10 6 13 6
CL 10-8 13 8 17 8
CL 10-10 6.9 15 9 19 10
CL 10-12 18 11 24 12
CL 16-5 16 5.5 7.5 11.5 9 5 11 5
CL 16-6 11 6.4 13 6
CL 16-8 13 7 17 8
CL 16-10 15.5 7.8 20 10
CL 16-12 18 11 24 12
CL 16-16 24 14 30 16
Part No. Cable Size mm² A B C F E D Stud Size
CL 25-6 25 6.9 9.0 15 13.5 6 13 6
CL 25-8 14.5 8 17 8
CL 25-10 15.5 9 19 10
CL 25-12 18.5 11 24 12
CL 25-16 24 14 30 16
CL 35-6 35 8.2 10.7 15 15.5 8 17.5 6
CL 35-8 8
CL 35-10 20.5 10
CL 35-12 18 11 24 12
CL 35-16 16 24 14 30 16
CL 50-6 50 10 12.8 16 18.5 8 18 6
CL 50-8 8
CL 50-10 19.5 10 24 10
CL 50-12 11 12
CL 50-14 18 24 14 30 14
CL 50-16 41 16
CL 50-20 32 19 20
Part No. Cable Size mm² A B C F E D Stud Size
CL 70-8 70 11.7 15 18.5 21 8.5 19 8
CL 70-10 10.8 21.5 10
CL 70-12 24 12
CL 70-16 24 14 30 16
CL 70-20 32 19 41 20
CL 95-8 95 13.5 17.4 20.5 25 10.5 23.5 8
CL 95-10 11 10
CL 95-12 13 27.5 12
CL 95-16 28.5 14 33 16
CL 95-20 32 19 41 20
CL 120-8 120 15.5 19.8 26.5 28.5 13 30 8
CL 120-10 10
CL 120-12 12
CL 120-16 31 15 34 16
CL 120-20 34.5 19 41 20
Part No. Cable Size mm² A B C F E D Stud Size
CL 150-8 150 17 22 28.5 30 13 31 8
CL 150-10 10
CL 150-12 12
CL 150-16 31 16 36 16
CL 150-20 34.5 19 42 20
CL 185-10 185 19 24.4 31.6 34.5 15 35 10
CL 185-12 12
CL 185-16 17 16
CL 185-20 19 42 20
CL 240-10 240 21.5 27.7 33 39 19 42 10
CL 240-12 12
CL 240-16 16
CL 240-20 20
Part No. Cable Size mm² A B C F E D Stud Size
CL 300-10 300 24.5 31.3 35 44 20 45 10
CL 300-12 12
CL 300-16 16
CL 300-20 20
CL 400-00 400 27.5 35.6 41 50 24 47 **
CL 500-00 500 31.6 40 41.5 58 ** 53 **
CL 630-00 630 34.5 44.5 53 64 ** 65 **
CL 800-00 800 40 51.2 68 73 ** 75 **
CL 1000-00 1000 44 56.6 75 81 ** 75 **
